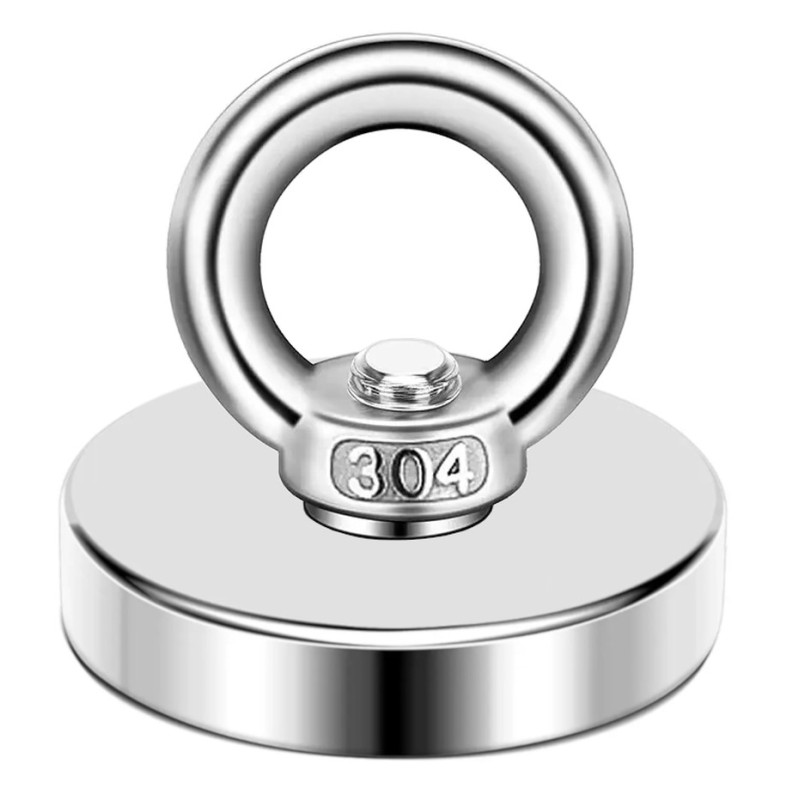

Neodymium Magnet 48 MM

MAX Load Capacity: 90 kg

Small Dimensions, High Power

• SKU: MNR-N52-D48

Universal Application

• Home, Garden, Workshop, Recreation, etc.

Technical Data

• Magnet Height H1: 11 mm
• Total Height H2: 50 mm
• Eyelet Diameter D1: 7.6 mm
• Eyelet Diameter D2: 20.3 mm
• Magnet Diameter D3: 48 mm
• Class: N52
• Thread: M8
• Magnet Weight: 192 gr
• Anti-corrosion Coating: Ni-Cu-Ni
• MAX Load Capacity: 90 kg

Note: The magnet's attraction force is influenced by factors such as the contact surface and iron content. The load capacity is tested using a special device under optimal conditions, with the magnet attached to a thick, even steel surface. For uneven, thin, painted, or rusty metals, the lifting capacity will be reduced. In extreme cases, the power loss can be as much as 70%.
